Product Detail

OCS-ZSH 15t~50t

Collect
  • Product

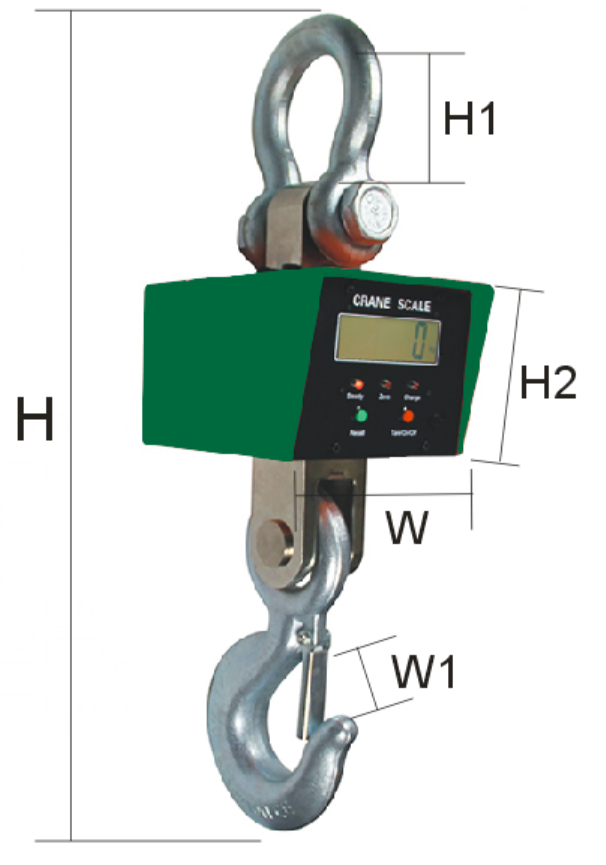

Dimension:


MODELCap.DivisionDimensions(mm)G.W(kg)
HH1H2WW1
OCS-ZS-1515t5kg8501301502606950
OCS-ZS-2020t10kg9301301902508674
OCS-ZS-3030t10kg110015019025010097
OCS-ZS-5050t20kg1600300280300140254


 Operating temperature range-10 ° C ~ +60 °   C
 A / D conversion speed10~80 times / sec
 Stable time<5.0s
 relative temperature<90% RH;
 Load cell Supply Voltage 5V
 Accuracy III
Safe overload150%FS
Destruction   overload300% FS
Display5 / 6 pcs 1.2” LCD (With backlight)
Unit kg /  Lb / kN / t / viss
Remote   control the use of distance ≤ 15 m
Battery Standard   lead-acid battery 6V/4A
     7.4v/5200MA optional
Charger8.4VDC/1A
Shell materialIron
Shell colorGreen
