Model: HY-BDW

Wireless Big Screen Displayer

◆ Transmission by air: radio frequency 430MHZ to 470MHZ ;
◆ Radio channel :1~99 channel selectable by dip switch;
◆ Wireless Transmit Power : 11dBm , 14dBm , 20dBm , the default is 19dBm ;
◆ Wireless transmission distance : no less than 200 meters ;
◆ One-way data transmission, two - way special features can be customized ;
◆ Big screen power supply : AC220V or other standard AC ;
◆ Screen size : Conventional 1 " , 2.3", 3" , 5 " ;
◆ Supporting the use of equipment : wireless weighing indicator , crane scale, software weighing system where it is needed

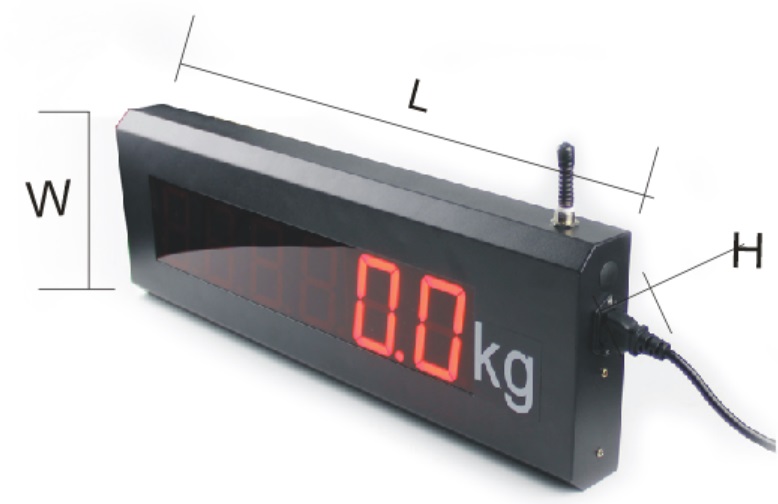

Dimension:

L*W:

1" : 255*100mm

2.3":380*150mm

3" : 540*180mm       word height:75mm

5" : 780*260mm       word height:125mm
