HY-BD-2.3" / 3" / 5"

Collect
  • 商品说明

◆ Long-distance observation weighing results, can be used as an auxiliary display weighing device.

Connected with the computer, as the auxiliary display system. (computer output format shall be complete, can be customized all matching protocol)

Dynamic scan latch Technology

Ultra high brightness digital block, the optical filter film special, wide scope

Screen size:1.2 ",2.3”, 3", 5 "

Display character: 6 LED or 4 LED(Custom made)

The communication interface: RS232 / current loop

Use environment temperature: 0 ~ 40 ℃The use of environmental humidity: ≤ 85%RH

Power: AC 187 ~ 242V 49 ~ 51Hz or AC110V, AC380V, AC415V, AC480V (Custom made)

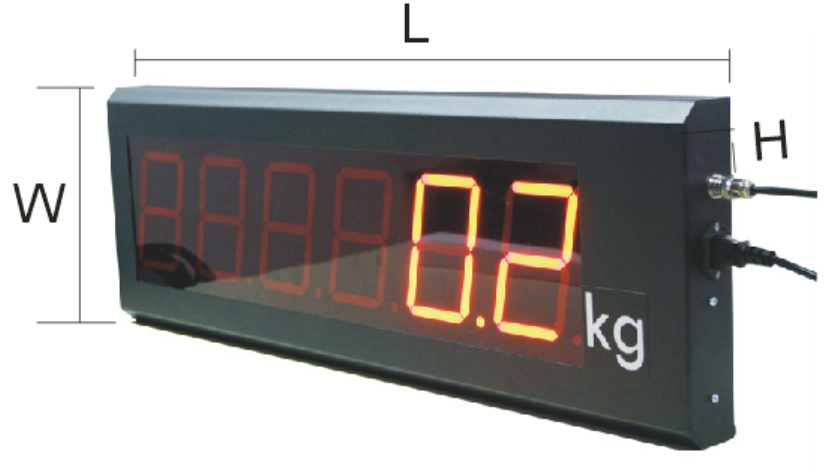

Dimension:


L*W:

1" : 255*100mm

2.3": 380*150mm

3" : 540*180mm       word height:75mm

5" : 780*260mm       word height:125mm

RS232 mode (Baud 1200/2400)BD interfaceIndicator interface
Pin1
Pin2
Pin3(RXD)
  TXD
Pin4
Pin5(GND)GND


Current loop mode (Baud 600)

                   (Default)
BD interfaceIndicator interface
Pin1-Pin4   connect
Pin2 +OUT
Pin3

Pin4
Pin5 -OUT
