HY-BD-1.2"

Collect
  • 商品说明

Big displayer

RS232 communicate

RS485 communicate(customization)

Current loop (Default)



◆ Display character: 6 LED (1.2 inch)

◆ Power: AC 187 ~ 242V 49 ~ 51Hz or DC6~12V

◆ The communication interface: Current loop or RS232

◆ Use environment temperature: 0 ~ 40 ℃

◆ The use of environmental humidity: <=85%RH

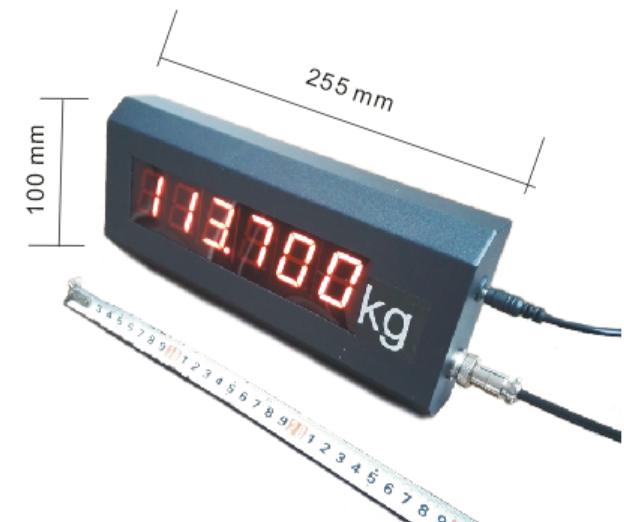

Dimension:


1" : 255*100mm

RS232 mode (Baud 1200/2400)BD interfaceIndicator interface
Pin1
Pin2
Pin3(RXD)
  TXD
Pin4
Pin5(GND)GND


Current loop mode (Baud 600)

                   (Default)
BD interfaceIndicator interface
Pin1-Pin4   connect
Pin2 +OUT
Pin3

Pin4
Pin5 -OUT
