Product Detail

HY16-A

Collect
  • Product Description

Suitable for general weighing indicator, 1~4pcs load cell, such as bench scale, platform scale etc.


Place  of OriginNingbo,China(Mainland)
Brand NameYEAHEVER
Model NumberHY16-A (Iron shell)
TypeWeighing indicator (Wireless optional)
Accuracy24 bit AD
Sample  rate10 tims/s or 40 times/s
Load  cell sensitivity1~3mV/V
Display6 bit 1.2" LED
Display  colorRed or Green
Division1/2/5/10/20/50/100 optional
Weighing Unitskg/lb
External InterfaceRS232 interface
Dimension(mm)252*157*100mm
Power Supply6V/4A lead-acid or  DC12V~24V adapter
PrinterOptional wireless printer
Operating temperature-25°C~50°C, RH 10%~85%, Non-condensing
Storage temperature-30°C~55°C, RH 10%~85%,Non-condensing

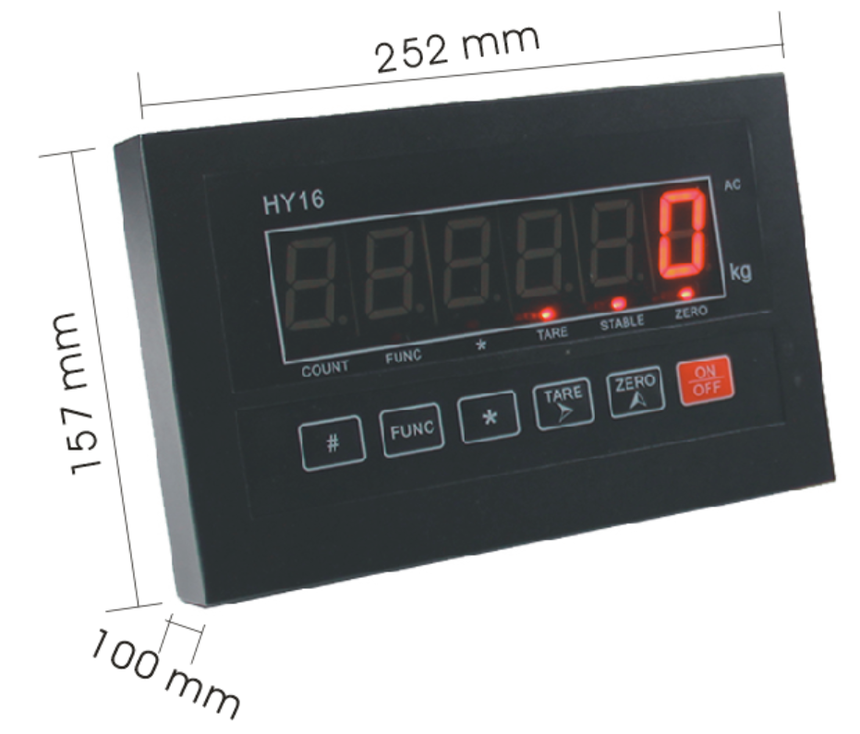

Dimension：

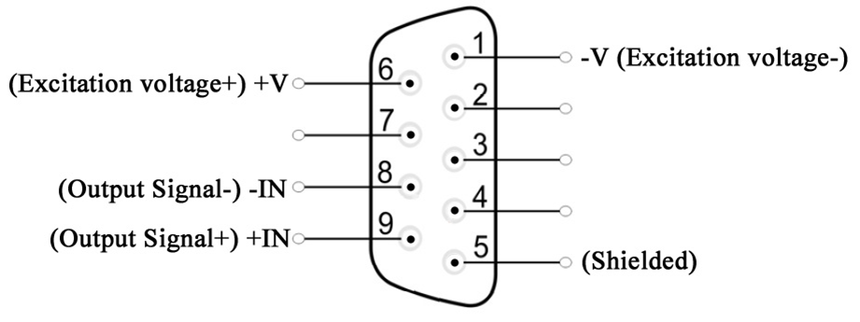

Port of load cell:
