Product Detail

HY18-SS

Collect
  • Product

Stainless steel shell.

Suitable for general weighing indicator, 1~4pcs load cell, such as bench scale, platform scale etc.


Place  of OriginNingbo,China(Mainland)
Brand NameYEAHEVER
Model NumberHY18-SS
TypeWeighing indicator (Wireless optional)
Accuracy24 bit AD
Sample  rate10 tims/s or 40 times/s
Load  cell sensitivity1~3mV/V
Display6 bit 1.2" LED
Display  colorRed or Green
Division1/2/5/10/20/50/100 optional
Weighing Unitskg/lb
External InterfaceRS232 interface optional

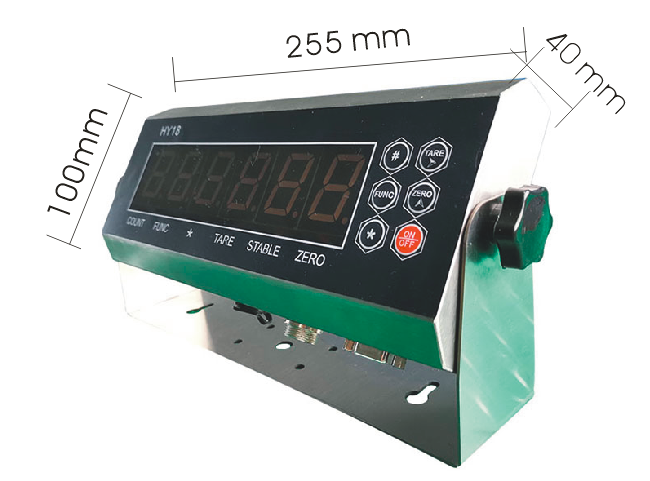

Dimension(mm)255*100*40mm
Power Supply

DC6V~12V adapter,

Optional 7.4v/2000mA lithium battery

Operating temperature-25°C~60°C, RH 10%~85%, Non-condensing
Storage temperature-30°C~65°C, RH 10%~85%,Non-condensing


Dimension:


Port of load cell
