Chapter 1 Main Specification

1. Model：          YH252-A Signal collector

2. Accuracy: 24 bit AD

3. Sample Rate： 80 times / second

4. Communication output speed: 100times / second

5. Communication interface：  RS232C , Baud rate 19200,None,8,1

6. Power supply: DC9~12V

7. Operating temperature/humidity: -10～50℃；≤90%RH

 8. transporting temperature:-20～50℃

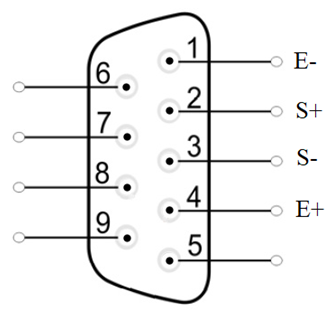

Chapter 2 Connect port

PIN1---------------E-(Excitation Voltage-)

PIN2---------------S+(Output Signal+)

PIN3---------------S-( Output Signal-)

PIN4--------------E+(Excitation Voltage+)

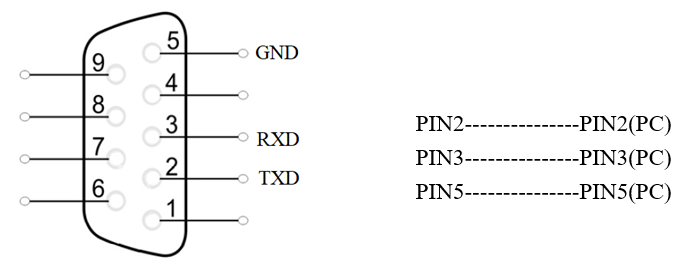

Port of communication

USB port and RS232 port for choose.

Communication protocol:19200,None,8,1

100times/second continuous send.

(1)   USB port, you need install the drivers when you connect to PC;

(2)   RS232 port

In continuous mode:

BCC=check sum,take the sum of lower 7 bits of weigh data between byte2 to byte9,

While the value=02H or 0DH, it will automatically plus 1 to avoid repeating controlling;

Status byte: 0,0,1,1,stable,negative,0,0(Binary data)

(Eg: 9666 Hex data 025C2=9666)
