1. Overview
Our weighing system, high-precision weigh load cell and weighing indicator using the most advanced sigma-△ type A / D converter, with high reliability, good accuracy.
2. Features
● Waterproof and shockproof housing;
● Dual channel wired or wireless transmission is optional ;

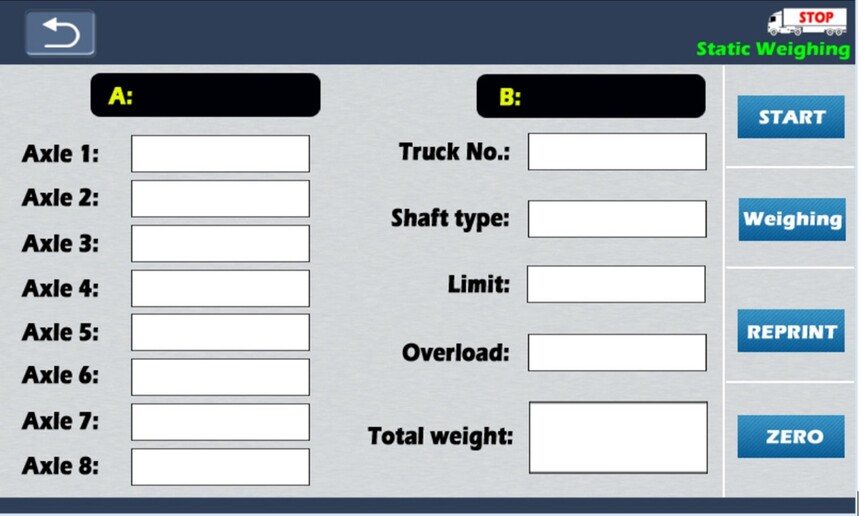

● Static weighing and dynamic weighing modes can be selected;
● 7 "color screen with touch function;
● Built-in mini printer, weighing results can be classified printout;
● Digital filtering speed, range and stable time can be set;
● Set an accurate internal clock and calendar;
● Large-capacity battery-powered;
3. Important technical parameters
(1) Sampling rate: 24bit-1kHz
(2) The sensitivity of the sensor range: 1.5 to 3mV / V
(3) Division value: 1/2/5/10/20/50 optional
(4) Accuracy class: Complies with OIML III scales standard
(5) Power supply: Lithium battery 7.4V/5000mAH or lead acid battery 6v/4A
(6) Power charger adapter: DC8.4V 1000mA
(7) Radio Frequency: 430MHZ to 470MHZ, can be set to multi-frequency, built-in aerial
(8)Data Communication Interface: wireless communication or USB2.0/RS232(optional) , baud rate, 1200/2400/4800/9600 optional
(9) The instrument battery charging time continuous working time: 50 hours
(10) Operating temperature: -10 ° C to 60 ° C
(11) Storage temperature: -25 to 65 ° C
(12) Humidity: ≤ 85% RH
(13) Size: 280 * 250 * 100mm(Indicator)

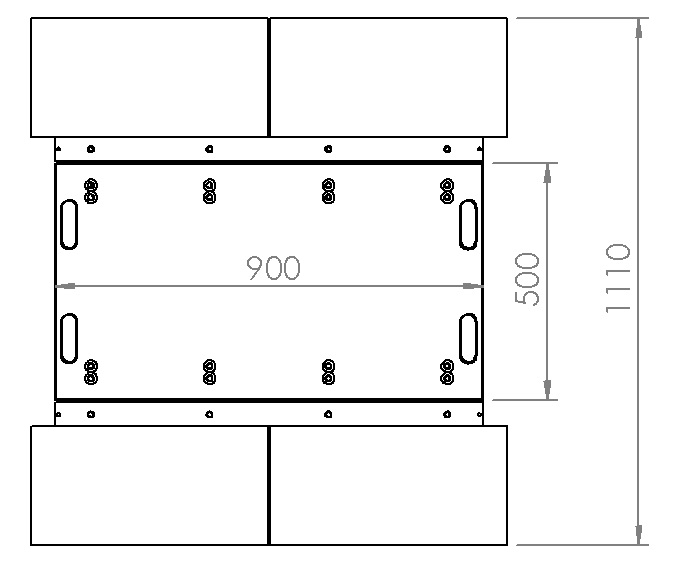

Dimension of scale pad:
400*300*66mm, 0.5~5t
500*400*66mm, 1~10t
700*450*66mm, 5~15t
900*400*66mm, 5~20t
900*500*66mm, 5~20t

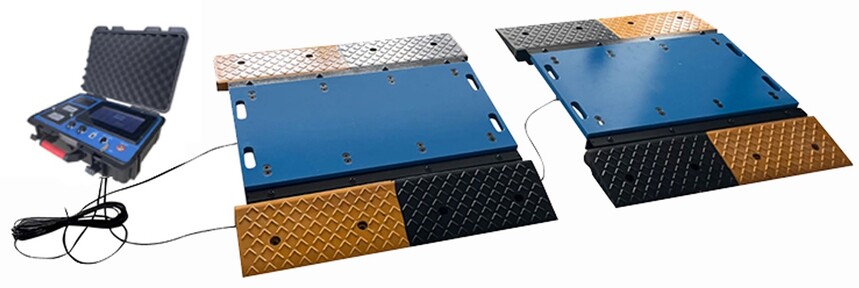

a. Wired
b. Wireless
No need to connect any cable. Power on wireless pads and indicator, they will connection automatically.(Optional)
