HY35D

Collect
  • Product Description

Features
● Wireless two-way data transmission, Convenient for wireless networking;
● The whole moderate size, easy to carry;
● 3.5 "color screen with touch function;
● Built-in mini printer, weighing results can be classified printout;

● Can store up to 500 weighing records, You can easily search and view and print all records;

● Digital filtering speed, range and stable time can be set;

● Can choose to set a variety of units of measurement;

● Set an accurate internal clock and calendar;

● Large-capacity battery-powered;

● The indicator and supporting wireless sender and the load cell through a wireless data interconnection, constitute a complete set of wireless weighing system.


Important technical parameters

(1) Sampling rate: up to 80 times / sec for Wireless sender
(2) The sensitivity of the load cell range: 1.5 to 3mV / V for Wireless sender
(3) Division value: 1/2/5/10/20/50 optional
(4) Accuracy class: Complies with OIML III scales standard
(5) Power supply: Lithium battery 7.4V/2000mAH
(6) Power charger adapter: DC8.4V 1000mA
(7) Radio Frequency: 430MHZ to 470MHZ, can be set to 1~99 channel
(8)
Maximum wireless distance: 200m (open area)
(9)Data Communication Interface: wireless communication or          RS232(optional) , baud rate, 1200/2400/4800/9600 optional
(10) The indicator battery charging time continuous working time: 50 hours
(11) Operating temperature: -10 ° C to 60 ° C
(12) Storage temperature: -25 to 65 ° C
(13) Humidity: ≤ 85% RH
(14) Size: 224 * 117 * 100mm

80*55*30mm(Wireless Sender)


For IndicatorDisplay3.5" color   screen(320*480 dot)
Weighing Unitskg/t/lb/kN…
Division1/2/5/10/20/50/100 optional
Dimension(mm)224x117x100
Power supplyRechargeable   battery 7.4V / 2Ah
or 8.4V / 1A charger
External InterfaceRS232   interface optional
PrinterMicro printer
Operating   temperature-25°C~50°C, RH 10%~85%, Non-condensing
Storage   temperature-30°C~55°C, RH 10%~85%,Non-condensing
CommunicationWireless interface,434M~470MHZ
For wireless SenderA/D conversion methodΣ-Δ 24bit
Input signal range–19.8mV~19.8mV
Load cell   excitationDC 5V
Max. connection   number of load cell1~12
Load cell   connection mode4 wire
Operating   temperature-10 °C ~40 °C
Allowable working   temperature-40 ° C ~ 70 ° C
Wireless   transmission frequency430MHz to 470MHz
Wireless   transmission distance200   meters (in wide place)



Partial display interface

image.png 1722697548632539.png 1722697682889267.png

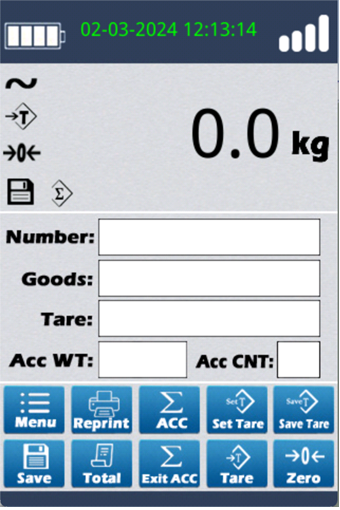

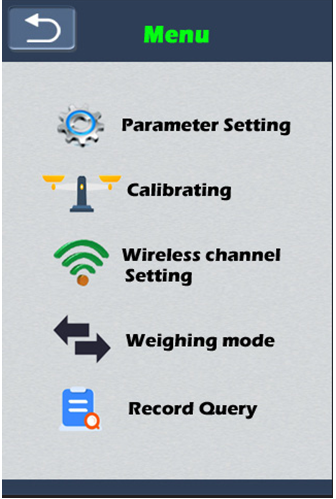

                     Startup screen                                               Weighing form                                         Menu function selection


1722697721485902.png 1722698123197209.png 1722698161623852.png

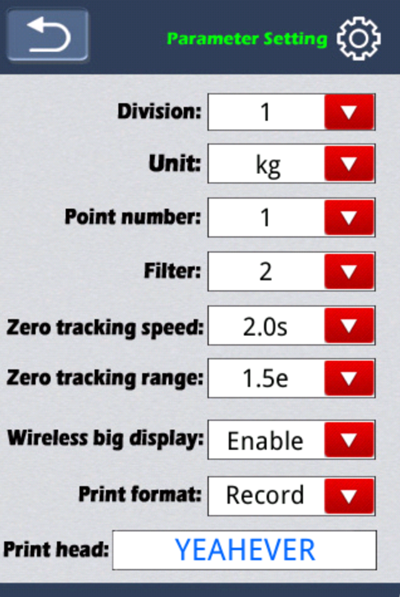

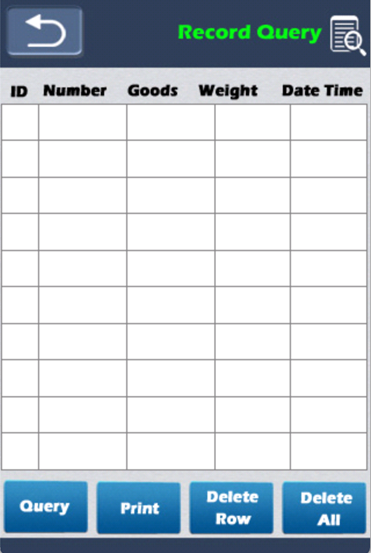

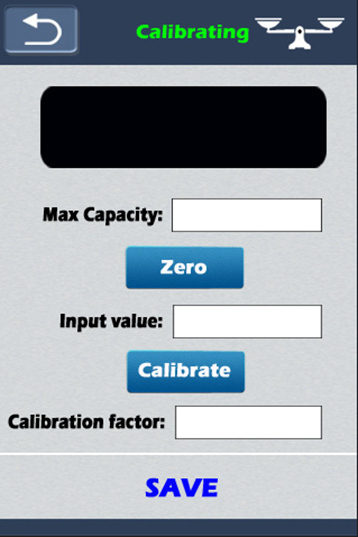

             Parameter Setting                                                 Calibrating form                                                    Query form
